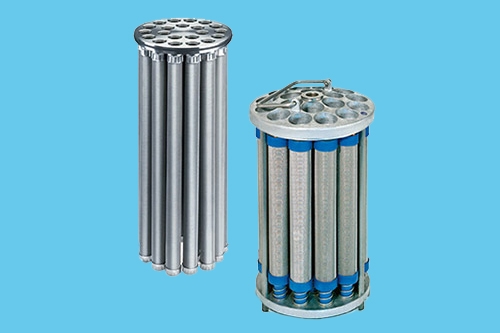

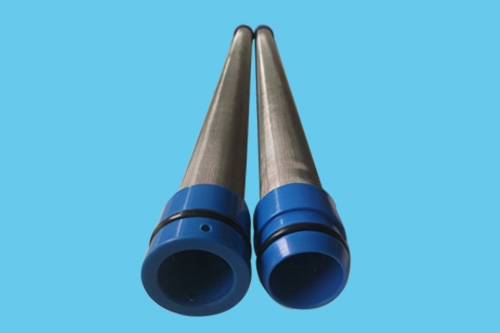

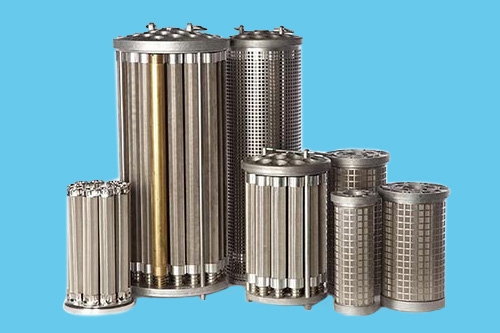

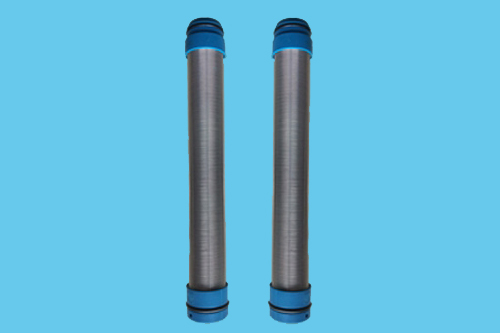

D.King candle filter elements are mainly used in back wash simplex filters and duplex filters. They consist of resistant, stainless-steel wire mesh with a filter fineness of 10 to 150 microns. As an option, a magnetic insert can be installed the candle element to retain finer particles of metal.

D.King candle filter elements are made to protect your valves, pumps and bearings from contamination, and consistently filters muddy fluids and feed the cleaned materials back into the process. A filter candle contains multiple mesh candles in parallel that are placed on or screwed on and each have the same dimensions. Thus, a large filter area is created for a low construction volume. The candle insert distinguishes itself by a particularly high resistance to differential pressure. Due to the use of stainless-steel wire mesh, the filter candles can be cleaned many times and be economically used over a longer period. Primarily at high temperatures and in operating conditions in which plastics, fleece or paper are unsuitable, a candle element made from stainless steel is first choice.

D.King candle filter elements are well suited for the filtration of liquids which have a low content of solids, i. e. they are primarily used for liquids that are already very clean, e.g. for water treatment. For filtration, flow to the candle insert in the filter is from the outside to the inside, so that mechanical filtration of the surface can be carried out. Candle sieves can be adapted to the most diverse requirements of industry with practically no restrictions.

Compared to an inset for a jacket sieve, a candle insert stands out by a considerably larger filter area and longer service lives, also due to the few components and easier cleaning. In addition, the filter candles can be individually replaced.

For cleaning, the filter candles are easily removed from the closed-off filter chamber, manually cleaned using a liquid cleaning fluid, blown out using compressed air and inserted into the filter. Due to attachment and locating the filter element, conditional to the shape, the greatest process reliability is ensured.

Type: Simplex Filter type 1.03.2,1.65.1,1.53.1

Type: Duplex Filter type 2.05.5, BFD

Filtration Grade: 10 µm – 150 µm

Filter media: Stainless steel wire mesh

Cleaning/Replacement: Manual cleaning
