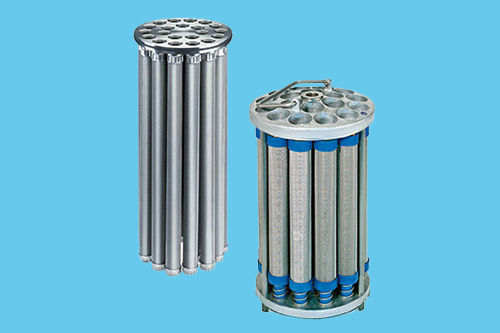

Candle filter is replacement type of BOLL filter . the size and working principle same as original boll filter .
Candle filter is replacement type of BOLL filter . the size and working principle same as original boll filter .
There have three type according to the connection type: thread type , Spring type , insert type .
Candle filter is mainly used for oil filtration . the filter media is stainless steel mesh , it can be back cleaning and reuse after clean .
In 2006 , one Germany customer found us through other clients . they ordered some types candle filter , then they study it and produce themselves , some month later , the Germany customer take their candle filter to our company , and show their products , Said “ our product is better than you “ ,then our engineer study and improve technology , then produce the best products . we send sample to Germany customer , they said “yes, you are great “ , After several negotiate with Germany customer, the technology of candle filter is the best , can the candle filter is completely replacement the boll filter. In these 8 years , we exported more than million pcs candle filter .
Boll candle element filter
Name |
Model |
Connection type |
Flow capacity (L/min) |
Micron rating (um) |
Nominal pressure(MPa) |
Pressure loss(MPa) |
Size (mm) |
||
Initial |
Max |
D |
L |
||||||
Candle Filter Element |
BYLX19*330 |
|
20 |
20 |
1.0 |
No more than 0.1 |
0.35 |
19 |
330 |
BYLX30×223 |
M26×1.5 |
20 |
30 |
223 |
|||||
BYLX30×400 |
M26×1.5 |
35 |
30 |
400 |
|||||
BYLX30×440 |
M26×1.5 |
40 |
30 |
440 |
|||||
BYLX30×723 |
M26×1.5 |
60 |
30 |
723 |
|||||
BYLX30×245 |
φ26 |
20 |
30 |
245 |
|||||
BYLX30×422 |
φ26 |
35 |
30 |
422 |
|||||
BYLX30×462 |
φ26 |
40 |
30 |
462 |
|||||
BYLX30×745 |
φ26 |
60 |
30 |
745 |
