Introduction :

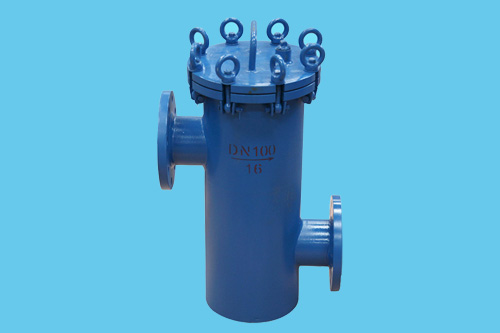

T type filter is belong to pipeline rude filter series . Normally installed in pressure reducing valve, pressure relief valve, the valve for water or other equipment inlet end . Used to clean up the impurity in the media, in order to protect the valve and the equipment normally use . T type filter is a kind of indispensable filtering device which is transport medium pipeline system .

Technical parameters

1.  Housing material : carbon steel , stainless steel ; 2.  Nominal diameter : DN40-DN400 mm ; 3.  Filter screen material : stainless steel ; 4.  Sealing material : NBR , pllytef (according to working medium ) ; 5.  Working temperature : no more than 90 centigrade ; 6.  Connection type : flange ; 7.  Normal pressure : 1.6MPa ; 8.  Micron rating : 10-480 mesh (water 18-30 mesh , gas 40-100 mesh , oil 100-480 mesh) ;
