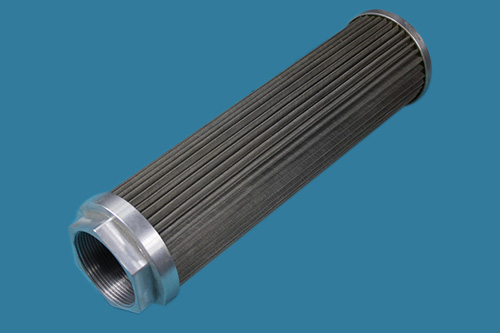

hydraulic oil filter pump mf-10 suction oil filter cartridge

1. Advantages of our oil filter cartridge

High using frequency
Compact structure
Higher accuracy
quality control system: ISO9001-2008
The structure of filter simpleness
convenient to use
Strong security
easy to instal
structure strength
completely interchangeable with original element
wide range of types are available
sample is available
energy efficient filters
efficiency: 99.99%
high integrity design to save your space
OEM product is welcomed

2. Effect of our oil filter cartridge

oil filter element install oil-put of oil pump in common. use to protect oil pump avoid to suction major mechanical admixture.filtering prill what component abrade created in hydraulic pressure and sealing element rubber impurity etc pollutant , make oil what reflow to tank keep clean.

3. Characteristics of our oil filter cartridge

structure strict reasonable , big ability pass oil , small reset pressure loss , big quantity accept dirt .etc.

4. Applications of our oil filter cartridge

scope of application: petroleum, water, air, oil field, refinery, medicine equipment, pipeline filters, railroad, astronautics, project machinery, etc

hydraulic oil filter

TAG: hydraulic oil filter

Specification

Model	Latus rectum(mm)	Nominal flow rate(L/min)	Filter precision(um)	Nominal pressure(MPa)	Pressure loss		Mating assemibly model
Model	Latus rectum(mm)	Nominal flow rate(L/min)	Filter precision(um)	Nominal pressure(MPa)	Initial	Max	Mating assemibly model
TZX2-10	10	10	1 3 5 10 20 30	1.6	0.05 hydraulic oil filters	0.35	Z/QU-A10
TZX2-25	15	25					Z/QU-A25
TZX2-40	20	40					Z/QU-A40
TZX2-63	25	63			0.07		Z/QU-A63
TZX2-100	32	100			0.07		Z/QU-A100
TZX2-160	40	160			0.12		Z/QU-A160
TZX2-250	50	250			0.12		Z/QU-A250
TZX2-400	65	400			0.15		Z/QU-A400
TZX2-630	80	630			0.15		Z/QU-A630
TZX2-800	90	800			0.17		Z/QU-A800
TZX2-1000	100	1000			0.17		Z/QU-A1000

Model	DN(mm)	Flow capacity (L/min)	Micron rating (um)	Nominal pressure (MPa)	Pressure loss(MPa)		Mating assembly model
Model	DN(mm)	Flow capacity (L/min)	Micron rating (um)	Nominal pressure (MPa)	Initial	Max	Mating assembly model
FAX-25	15	25	1 3 5 10 20 30	1.6	No more than 0.075	0.35	RFA-25
FAX-40	20	40					RFA-40
FAX-63	25	63					RFA-63
FAX-100	32	100					RFA-100
FAX-160	40	160					RFA-160
FAX-250	50	250					RFA-250
FAX-400	65	400					RFA-400
FAX-630	90	630					RFA-630
FAX-800	90	800					RFA-800
FAX-1000	90	1000					RFA-1000

Model	DN(mm)	Nominal flow rate (L/min)	Filter precision (um)	Nominal pressure (MPa)	Reset pressure loss (MPa)	Original assembly model
QYLX-63	15	63	3 5 10 20 30	1.0	No more than 0.1	QYL-63
QYLX-100	18	100				QYL-100
QYLX-160	40	160				QYL-160
QYLX-250	50	250				QYL-250
QYLX-400	60	400				QYL-400
