PP melt blown filter element uses polypropylene (PP) thermal...
It has been widely used in petroleum, chemical, pharmaceutical, food, environmental protection and other industries.
Basket filter to remove a small amount of liquid solid particles small equipment to protect compressors, pumps, instrumentation, and other normal operation, when fluid enters a certain size mesh filter barrel, its impurities are blocked, and clean the filtrate from the filter outlet when you need cleaning, simply remove the removable filter bucket out, you can reload after treatment, so maintenance is extremely convenient.
It has been widely used in petroleum, chemical, pharmaceutical, food, environmental protection and other industries.
If it is installed in series in other parts of the pump inlet or pipeline systems, it can either extend the life of pumps and other equipment, but also to ensure the safety of the entire system.
Basket filter is made up of takeover , cylinder , filter basket element , flange , flange covers and fasteners . Installed in the pipe to remove fluid in the large solid impurities . so that equipment ( including compressors , pumps ,etc ),the instrument can work and operate , stable process to ensure safe production .
Housing material: carbon steel , stainless steel
Nominal diameter: DN25DN400 mm
Filter screen material: stainless steel
Sealing material: NBR , pllytef (according to working medium )
Working temperature: no more than 90 centigrade
Connection type: flange
Normal pressure: 1.6MPa
Micron rating: 10480 mesh (water 1830 mesh , gas 40100 mesh , oil 100480 mesh)
1. Weak corrosive materials in the chemical, petrochemical production ,eg: water , ammonia , oil , hydrocarbon .
2. Chemical production of corrosive materials .eg: caustic soda , soda ash , dense and dilute sulphuric acid , carbonic acid , acetic acid , ester acid .
3. Low temperature materials in the refrigeration . eg: liquid methane, liquid ammonia , liquid oxygen and all kinds of refrigerating fluid .
4. Light food , pharmaceutical production , health requirements of the material . eg: beer , drink , dairy products , medicine appliance

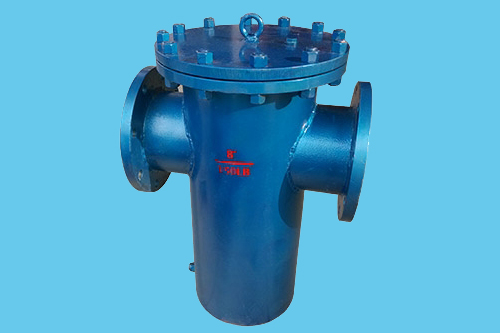

Basket Strainer
